Lighting Solutions for Stage and Architecture
About Glasson Electronics
Glasson Electronics developed the first combined power and data system for lighting applications in 1998. The system facilitates individual control of up to 250 luminaires on a common two conductor cable. The two-wire system enables the use of standard lamp bases simplifying installation and reducing installation costs relative to systems employing separate data cabling.
With a strategy of continual product development, the range of products has expanded over the years to include an extensive range of LED, Filament LED and incandescent lamps. Latest product developments include the new S19 version of Calesco and a new and advanced 230VAC output combined power and data technology.
All products are designed and manufactured in our UK based factory. As all facilities are in house, we are well placed to develop special products to customer requirements. We also manufacture custom festoon harness and supply a range of lamp holders.
Recent new in-house facilities include EMC testing and traceable optical measurement facilities.
Lighting Systems for Theatre and Architecture
Glasson Electronics combined power and data technology offers unparalleled installation simplicity and flexibility. Lamps are wired using standard two conductor cable but can be individually controlled whilst sharing a common cable. Several lamp types use standard Edison screw E14 or E27 lamp bases and can be used with standard lamp holders / festoons. Up to 250 lamps can connect on a single cable. The cable type is not specific. Virtually any 8 / 10A rated two conductor cable can be employed.
Glasson Electronics LED lamps all use linear current control as opposed to PWM. Linear current control offers incredibly smooth fading and flicker free operation when viewed with a camera.
All Glasson products offer a range of colour temperature options for single colour and the white of RGBW fittings. Colour temperature can be specified when ordering.
Lighting Solutions
DFS3000 offers a robust LED lamp with options for RGB or RGBW. The RGBW version is available with a range of white colour temperatures from 2200-6500K. Up to a full DMX universe of lamps can connect to a single two conductor cable. DFS3000 lamps can be used with any standard E27 lamp holder. A variety of diffuser options are available. DFS1000 is the single colour version.

DFS3000

DFS1000
Calesco brings warm white filament technology to the product range. Warm white filaments combined with a polished brass support structure result in a very attractive luminaire. Calesco lamps are available with RGB LEDs as well as the filaments. A small golf-ball version is available with an E14 lamp base. Up to a full DMX universe of lamps can connect to a single two conductor cable. Calesco lamps can be used with any standard E14 / E27 lamp holder. The range has recently been expanded to include Calesco S19 which offers an attractive Edison lamp version.
With a simple installation strategy DFS4000 offers a 40mm diameter surface mounting LED node which has numerous applications. Single colour, RGB and RGBW versions are available. A new version for use with 7mm diameter flexible conduit is available.

DFS4000

DFS4000 Conduit
Other Lighting Solutions

Lucias
Lucias offers a controlled beam width LED lamp with options for E27 or GU10 lamp base. Lenses are available with 9, 25 and 35 degree viewing angle. Single colour, RGB and RGBW versions.Offers true constant current LED control (not PWM) to realise super smooth fading.

Orbis
Orbis offers a 360 degree illuminated 70mm diameter sphere. Orbis lamps can be used singly or wired as strings. Single colour, RGB and RGBW versions available. Lamps are wired in house to customer specified spacing. A version with connectors is available.

Praeclarus
For architectural applications, Praeclarus facilitates the creation of flat or curved lighting matrices with a high level of transparency. The system uses a parallel or matrix wire support structure. Single colour ,RGB and RGBW versions are available..

Conduit LED
A versatile controlled beam width LED lamp, offering the flexibility of either an E27 or GU10 lamp base. Lenses are available in 9, 25, and 35-degree viewing angles. The lamp comes in single-color, RGB, and RGBW versions to suit various lighting needs

DFS Cabochon
Supplied with high quality Imel Park Cabochon fittings, DFS Cabochon implements an E14 LED lamp with single colour, RGB and RGBW options. The system offers a simple two conductor wiring system and facilitates individual control of up a full DMX universe of Cabochon lamps.

DFS200
Traditional incandescent lamps combined with an intelligent lamp holder. When operated from internal memory, large scale coordinated lighting displays are achievable using the unique synchronizing system. The DFS200 is available in 5 and 10W lamp options.

DFS5000
Formed from high quality PMMA globes, DFS5000 provides a range of large evenly illuminated LED lamps which are ideal for pelmet applications.

Lamp Holders
A range of lamp holders for through panel, pelmet and festoon applications. We can manufacture custom festoon harness or pelmet lamp holder assemblies to your specifications.

Power Units

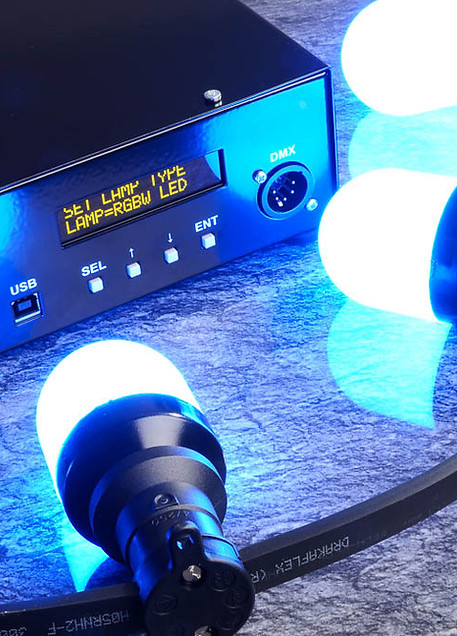

The VP and IP series power units are designed to combine both power and data on a two-conductor cable, providing efficient and individual control of an entire DMX universe.
